KTM 1290 SUPER DUKE R ('14-'19)
REAR SETS
| SATO RACING
Rear Sets for 2014-19 1290 Super Duke R features a track-engineered design, with components precision CNC machined out of high strength billet aluminum and anodized
in your choice of an all-Black finish, or Silver or Gold anodized finish with contrasting black anodized base plates. Modular design provides 6 adjustable foot peg positions in a range that brings your feet up higher
and further back compared to stock. An optional Reverse Shift Plate is also available, changing the standard stock shift pattern of the Rear Sets to a GP-style reverse shift pattern. |
POSITIONS
| 1 | 35mm Back | 40mm Up |
| 2 | 47.5mm Back | 40mm Up |
| 3 | 35mm Back | 52.5mm Up |
| 4 | 47.5mm Back | 52.5mm Up |
| 5 | 45mm Back | 52.5mm Up |
| 6 | 57.5mm Back | 52.5mm Up |
note: all measurements are in relation to stock position (0 mm).
| Looking for Rear Sets with a less aggressive setback? Check out our sets designed for the 1290 Super Duke GT, which also fits the R model - Product Details. |

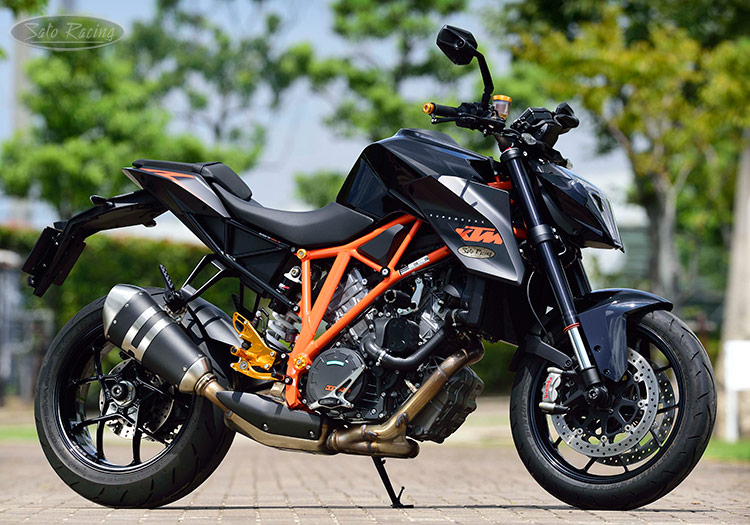

The following photos show these Rear Sets installed on a 2014 1290 Super Duke R.

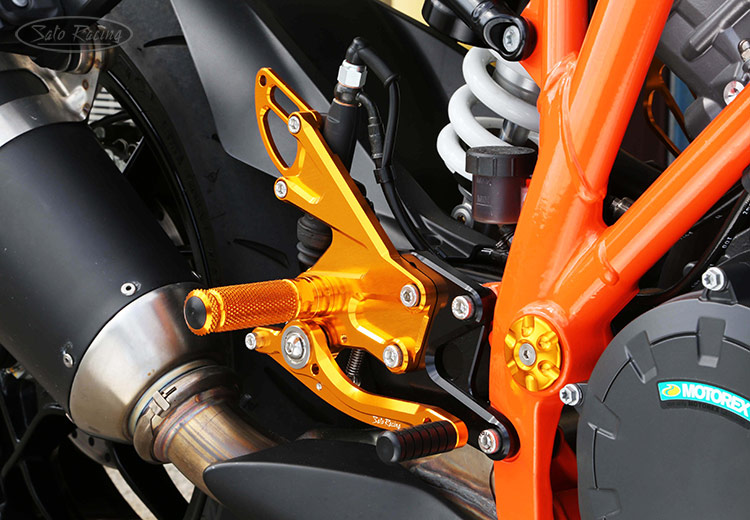

![SATO RACING KTM 1290 Super Duke '14-'19 Rear Sets [R]-side](pics/ktm1290duke_RS_R1.jpg "SATO RACING KTM 1290 Super Duke '14-'19 Rear Sets [R]-side")
The shift and brake pedals incorporate miniature double stainless
bearings for smooth, precise lever action with a solid, durable feel.
(Rear Sets pictured installed together with our matching
Frame Plugs, available for purchase separately. Details.)

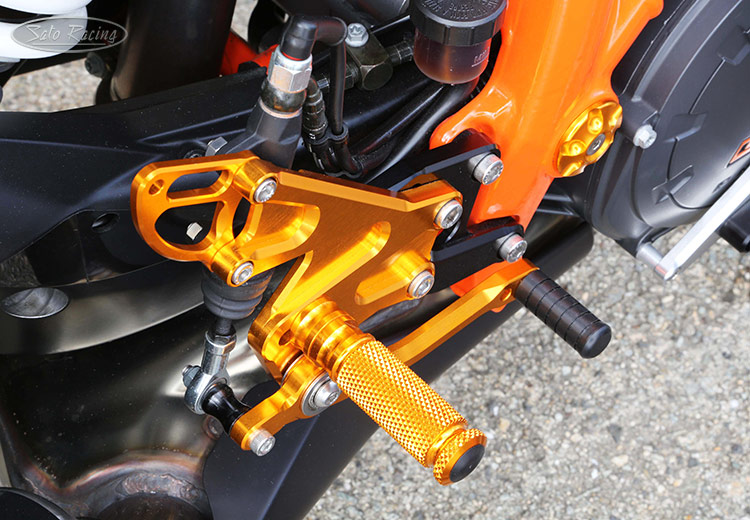

![SATO RACING KTM 1290 Super Duke '14-'19 Rear Sets [R]-side](pics/ktm1290duke_RS_R2.jpg "SATO RACING KTM 1290 Super Duke Rear Sets [R]-side")
The Foot Pegs are fixed (non-folding), and feature a finely knurled
pattern for optimal grip, along with a comfortable, intuitive feel.

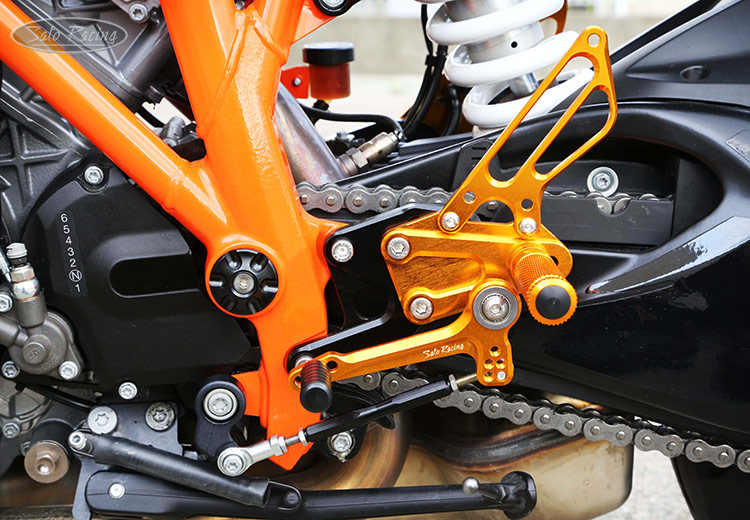

![SATO RACING KTM 1290 Super Duke '14-'19 Rear Sets [L]-side](pics/ktm1290duke_RS_L1stock.jpg "SATO RACING KTM 1290 Super Duke Rear Sets [L]-side")
These Rear Sets have a stock shift pattern when attached to the stock change arm.
The multiple adjustment holes on the shift pedal let you fine-tune the shift stroke.

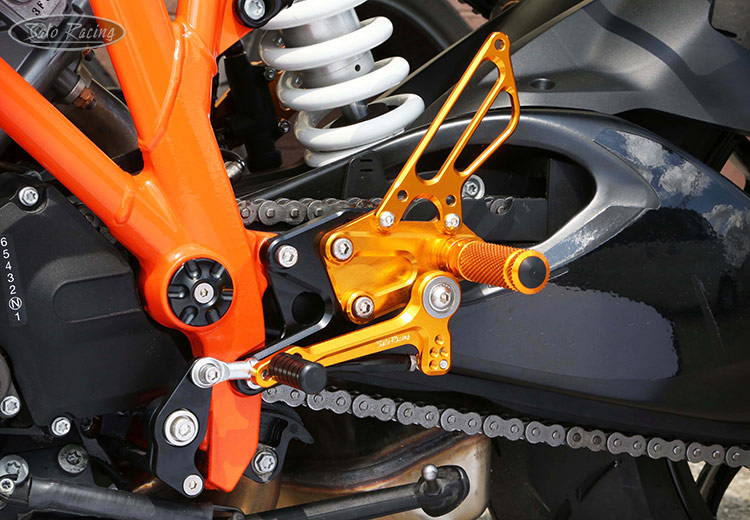

![SATO RACING KTM 1290 Super Duke '14-'19 Rear Sets [L]-side with optional Reverse Shift Plate](pics/ktm1290duke_RS_L1.jpg "SATO RACING KTM 1290 Super Duke Rear Sets [L] with optional Reverse Shift Plate")
Rear Sets shown with optional Reverse Shift Plate,
which converts these Rear Sets to a reverse (GP) shift pattern.

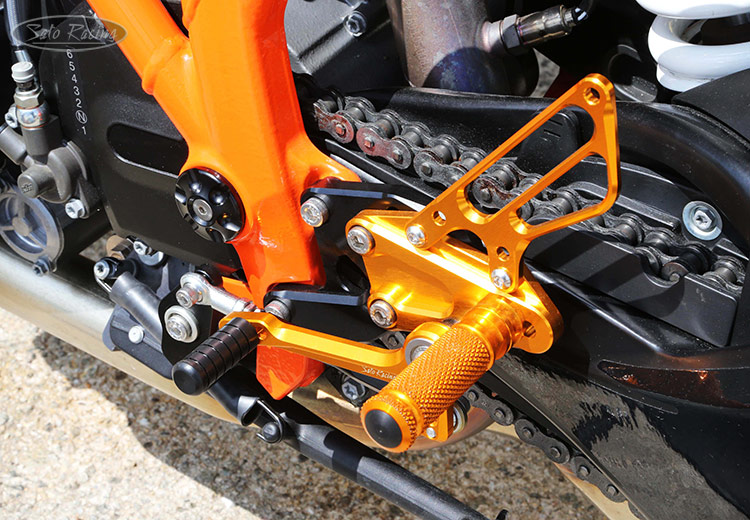

![SATO RACING KTM 1290 Super Duke '14-'19 Rear Sets [L]-side with optional Reverse Shift Plate](pics/ktm1290duke_RS_L2.jpg "SATO RACING KTM 1290 Super Duke Rear Sets [L] with optional Reverse Shift Plate")
REAR SETS

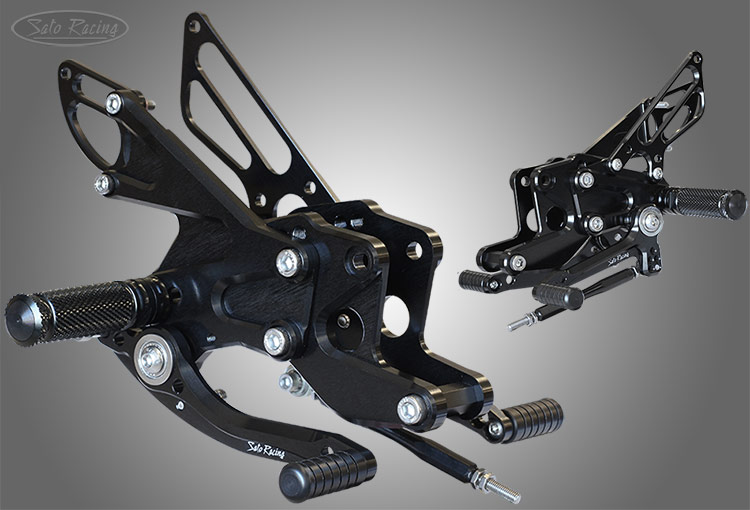

| BLACK | KTM-1290RS-BK $585 |
 |
| SILVER w/ BLACK base plates |
KTM-1290RS-SV $585 |
|
| GOLD w/ BLACK base plates |
KTM-1290RS-GD $585 |
|
Click Here for important info about Sato color-anodized parts.

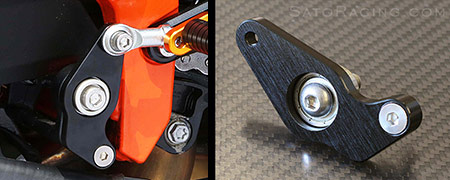

REVERSE SHIFT PLATE
| Provides a reverse shifting pattern for SATO RACING 990 Super Duke and 1290 Super Duke R Rear Sets. If using with SATO RACING 1290 Super Duke R Rear Sets, a shorter, 90mm-length Shift Rod is recommended. |
| REVERSE SHIFT PLATE [BLACK] |
KTM-990RS-RSP $80 |
|
| SHIFT ROD (90mm) [BLACK] |
SRD-90-B $39 |
|
ADDITIONAL OPTIONS
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
SILVER | RCPEG-SV $48 |
|
 |
GOLD | RCPEG-GD $48 |
|
Click Here for important info about Sato color-anodized parts.
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for these Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List
Some replacement parts for these Rear Sets
can be purchased in our online store:
 |
FOOT PEG (BK/ SV/ GD) |
PEG $42 |
|
 |
PEG COLLAR 12 (BK/ SV/ GD) (#17) |
PEGCLR-12 $15 |
|
 |
HEX HEAD M8-40mm (#33, Foot Peg bolt) |
HBT-M840 $2.00 |
|
 |
PEDAL TIP (DELRIN) | ST-001D18 $15 |
|
 |
BUTTON HEAD M6-20mm (#30, for Pedal Tip) |
BBT-M620 $1.50 |
|
 |
SHIFT ROD 100 (For STD shift / 100mm) (L-side #8) |
SRD-100B $39 |
|
 |
ROD END COLLAR 3 (L-side #14) |
RDED-CLR3 $6.00 |
|
 |
BASE PLATE COLLAR 5 (#16) |
BPCLR-5 $8.00 |
|
 |
SPLIT WASHER M8 (#19) |
SWS-8 $1.20 |
|
 |
SOCKET HEAD M6-18mm (L-side #22) |
SBT-M618 $2.00 |
|
 |
SOCKET HEAD M6-20mm (L-side #23) |
SBT-M620 $1.50 |
|
 |
JAM NUT M6 (L-side #38) |
JNT-6 $1.75 |
|
|
REVERSE JAM NUT M6 (L-side #39) |
JNT-6L $2.50 |
|
 |
M6 MALE REVERSE ROD END (L-side #40) |
RDED-M6L $12.50 |
|
 |
M6 FEMALE ROD END (L-side #41) |
RDED-F6 $15 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
