KTM 690 DUKE ('12-'18)
REAR SETS
|
SATO RACING
Rear Sets for 2012-18 KTM 690 DUKE*
features a track-engineered, competition-ready design, with components precision machined out of light-weight and high strength anodized billet aluminum, with stainless steel hardware. Adjustable design lets you choose from 4 foot peg positions, with a position range that brings your feet significantly higher up and further back compared to stock, providing a more aggressive riding position ideally suited for the track. You can set it up for either stock shift pattern to reverse
(GP) shift pattern. Choice of all-Black anodized finish, or Gold anodized finish with contrasting Black anodized shift linkage. *Fits the standard 690 Duke. Not compatible with the 2016+ R model that was sold outside the US. |
POSITIONS
| 1 | 70mm Back | 65mm Up |
| 2 | 82.5mm Back | 65mm Up |
| 3 | 70mm Back | 77.5mm Up |
| 4 | 82.5mm Back | 77.5mm Up |
note: all measurements are in relation to stock position (0 mm).

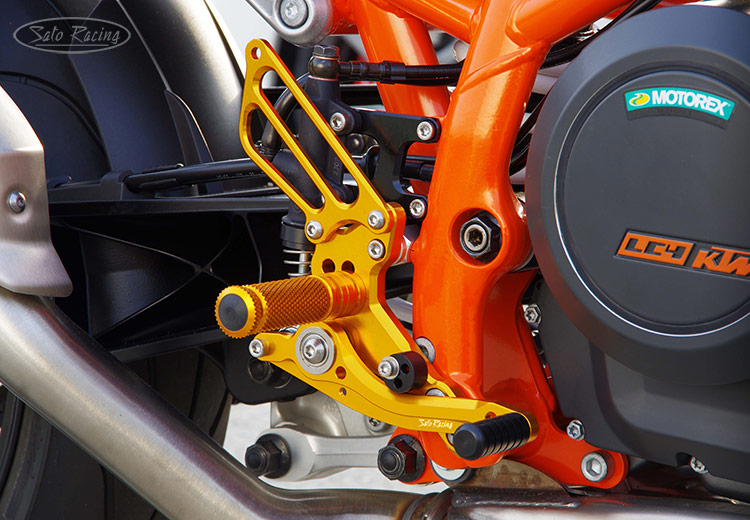

![SATO RACING KTM 690 Duke ('12- ) Rear Sets [R]-side](pics/KTM690DUKE12_RS_R1.jpg "SATO RACING KTM 690 Duke ('12- ) Rear Sets [R]-side")
| You can adjust the positions of the Foot Pegs and Pedal Tips multiple ways so you can find the ideal position for your riding style. The higher and set-back range of peg positions will put your legs and body in a better position for high performance riding. |

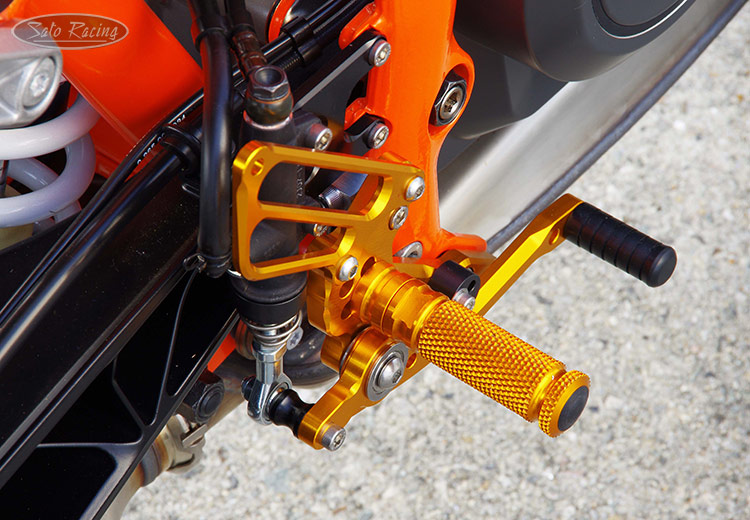

![SATO RACING KTM 690 Duke ('12- ) Rear Sets [R]-side](pics/KTM690DUKE12_RS_R2.jpg "SATO RACING KTM 690 Duke ('12- ) Rear Sets [R]-side")
|
The Foot Pegs have a finely knurled pattern for nice grip, along with a comfortable, intuitive feel. The Pedal Tips (toe pegs) are made of tough, abrasion-resistant black Delrin. Additional styles of Foot Pegs and Pedal Tips are available as options. (Details below) |

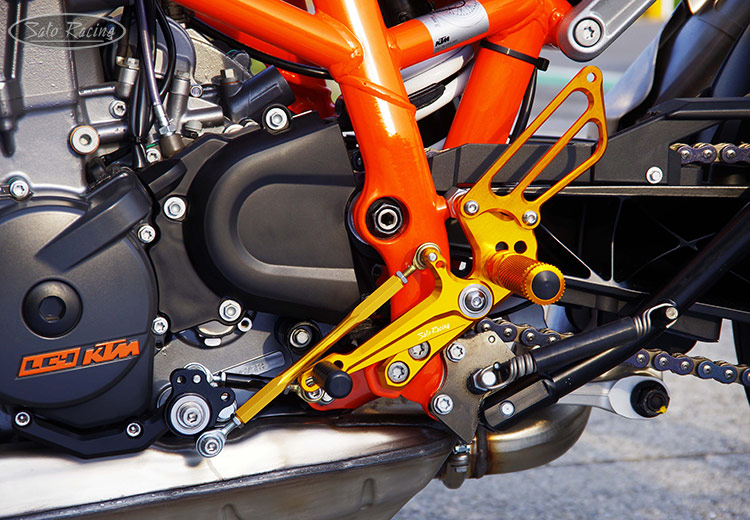

![SATO RACING KTM 690 Duke ('12- ) Rear Sets [L]-side](pics/KTM690DUKE12_RS_L1.jpg "SATO RACING KTM 690 Duke ('12- ) Rear Sets [L]-side")
| The shift linkage components use double miniature stainless bearings for smooth, precise shift action. Set it up for reverse (GP-style) shift pattern by relocating the shift rod to a different hole on the shift crank. Multiple adjustment holes let you fine-tune the shift stroke for optimal shift response. |

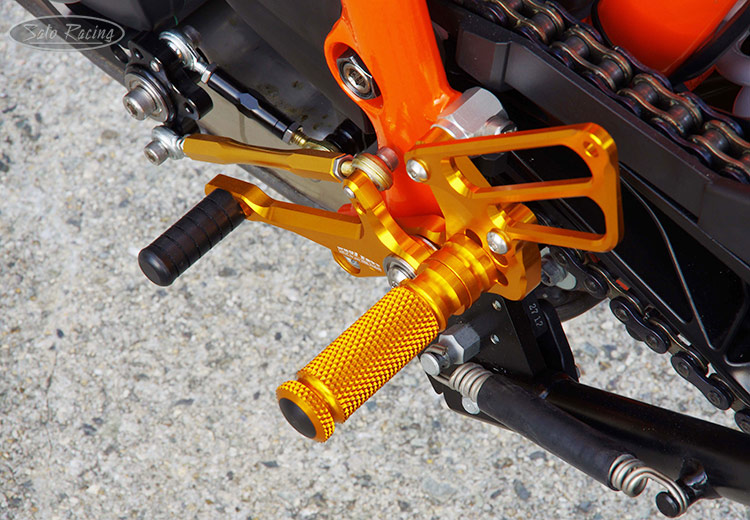

![SATO RACING KTM 690 Duke ('12- ) Rear Sets [L]-side](pics/KTM690DUKE12_RS_L2.jpg "SATO RACING KTM 690 Duke ('12- ) Rear Sets [L]-side")
| BLACK | KTM-69012RS-BK $550 |
 |
| GOLD | KTM-69012RS-GD $550 |
|
Click Here for important info about Sato color-anodized parts.
OPTIONS
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
GOLD | RCPEG-GD $48 |
|
Click Here for important info about Sato color-anodized parts.
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
Have questions or prefer to order by phone? You can call us to place an order -
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated
parts list included with your Sato Racing Rear Sets, or view the PDF:
Rear Sets [L]-side | Rear Sets [R]-side
Some replacement parts for these Rear Sets
can be purchased in our online store:
 |
FOOT PEG (BK/ SV/ GD) |
PEG $42 |
|
 |
PEG COLLAR 15 (BK/ SV/ GD) (#19) |
PEGCLR-15 $15 |
|
 |
HEX BOLT M8-40mm (#32 Foot Peg bolt) |
HBT-M840 $2.00 |
|
 |
PEDAL TIP (DELRIN) | ST-001D18 $15 |
|
 |
BUTTON HEAD M6-20mm (for Pedal Tip) |
BBT-M620 $1.50 |
|
 |
[L] HEEL GUARD (BK/ SV/ GD) (#1) |
HG-2L $50 |
|
 |
[R] HEEL GUARD (BK/ SV/ GD) (#2) |
HG-2R $50 |
|
 |
SHIFT ROD 40 [BLACK] (#9) |
SRD-40B $35 |
|
|
SHIFT ROD 130 (BK/ SV/ GD) (#10) |
SRD-130 $39 |
|
 |
ROD END COLLAR 15 (#17) |
RDED-CLR15 $8.00 |
|
 |
BASE PLATE COLLAR 2 (#18) |
BPCLR-2 $5.00 |
|
 |
PEDAL STOPPER (DELRIN) (#20) |
BPD-STOPPER $15.00 |
|
 |
SOCKET HEAD M5-20mm (#21) |
SBT-M520 $2.00 |
|
 |
SOCKET HEAD M6-10mm (#22) |
SBT-M610 $1.50 |
|
 |
SOCKET HEAD M6-16mm (#23) |
SBT-M616 $2.00 |
|
 |
SOCKET HEAD M6-18mm (#24) |
SBT-M618 $2.00 |
|
 |
SOCKET HEAD M6-30mm (#25) |
SBT-M630 $1.50 |
|
 |
SOCKET HEAD M6-40mm (#26) |
SBT-M640 $2.00 |
|
 |
SOCKET HEAD M8-25mm (#27) |
SBT-M825 $1.50 |
|
 |
SOCKET HEAD M8-30mm (#28) |
SBT-M830 $1.50 |
|
 |
BUTTON HEAD M6-10mm (#29) |
BBT-M610 $1.50 |
|
 |
BUTTON HEAD M8-20mm (#30) |
BBT-M820 $1.50 |
|
 |
BUTTON HEAD M8-25mm (#31) |
BBT-M825 $1.50 |
|
 |
SPLIT WASHER M8 (#33) |
SWS-8 $1.20 |
|
 |
PEG WASHER M8 (#34) |
PWS-8 $1.00 |
|
 |
JAM NUT M6 (#35) |
JNT-6 $1.75 |
|
|
REVERSE JAM NUT M6 (#36) |
JNT-6L $2.50 |
|
 |
LOCK NUT M6 (#37) |
LNT-6 $1.50 |
|
 |
M6 MALE ROD END (#38) |
RDED-M6 $12.50 |
|
 |
M6 MALE REVERSE ROD END (#39) |
RDED-M6L $12.50 |
|
 |
RETURN SPRING COLLAR 2 (#41) |
RS-RSCLR2 $12.00 |
|
 |
RETURN SPRING 20 (#42) |
RS-RSP2 $8.00 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
