DUCATI 749 / 999

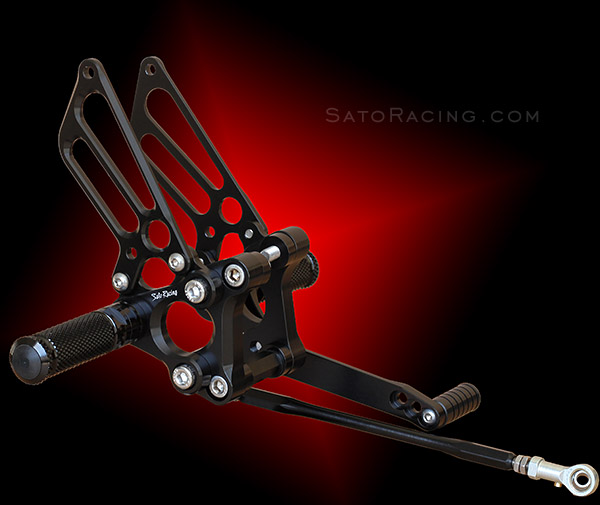

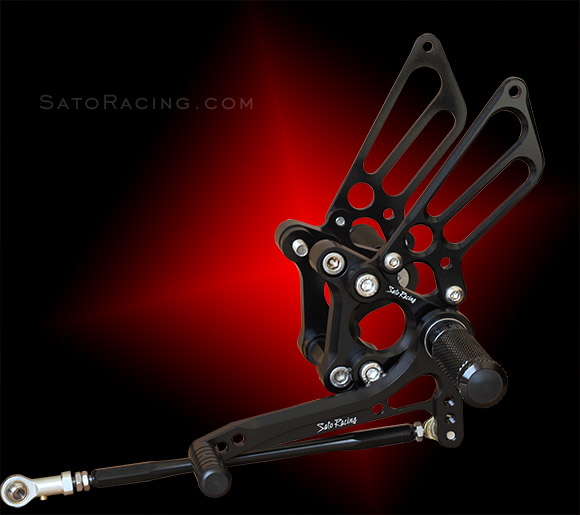

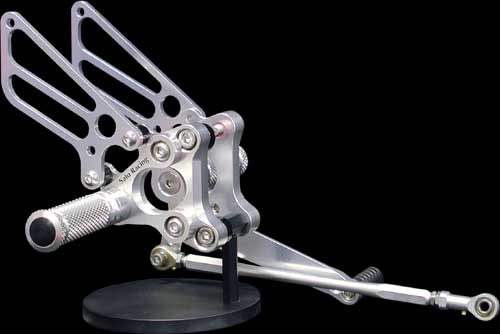

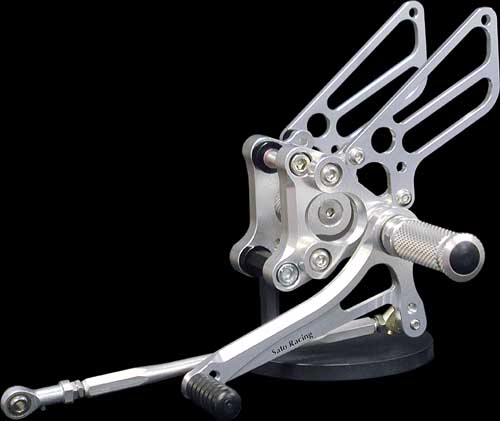

Rear Sets for 2003-06 Ducati 749 and 999 are CNC-machined out of high strength billet aluminum
and anodized in your choice of Black, Silver (clear metal), or vivid Gold finish. The shift pedal utilizes
double stainless bearings for smooth, precise pedal movement. Deeply
knurled footpegs provide excellent grip, along with a comfortable, intuitive feel. These Rear Sets provide
2 positions of adjustment in a range that brings your feet 15 or 20mm higher up and 12.5mm forward compared to stock.|
These Rear Sets are designed to work with the stock Ducati brake pedal, but we do offer an optional adjustable Brake Pedal Kit that goes well with these Rear Sets.
|1||12.5mm Forward||15mm Up|
|2||12.5mm Forward||20mm Up|
note: all measurements are in relation to stock position (0 mm).
Shown with optional SATO Adjustable Brake Pedal
Note: Right side heel guard cannot be used on SBK replica model.
You can switch from stock shift to GP-style reverse shift pattern
by flipping the stock shift arm the opposite direction.
STOCK PATTERN REVERSE PATTERN
ADJUSTABLE BRAKE PEDAL KIT
This Brake Pedal Kit replaces the stock brake pedal on Ducati 749 / 999.
Anodized billet aluminum with stainless steel bolts and a Delrin pedal tip.
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List
More Sato Racing items for DUCATI 749 / 999
