(Type1 & Type2)
1198-series Rear Sets are made from high grade billet aluminum anodized in your choice of Black, Silver, or Gold finish.|
'Type 1' version Rear Sets are designed to work with the stock brake pedal, or you can get a matching SATO Adjustable Brake Pedal. The 'Type 2' version Rear Sets include an integrated brake pedal.
Choose from 10 positions of adjustment, ranging from stock equivalent to higher and more forward positions.
Options include an adjustable Shift Arm that works well with our 1198 Rear Sets.

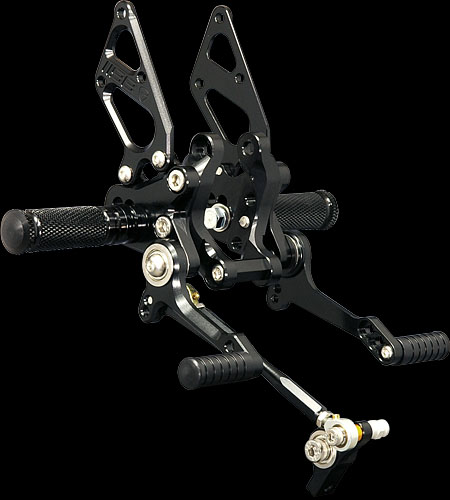

Type2 Rear Sets (with brake pedal) shown. Type1 also available.
|2||5mm Forward||15mm Up|
|3||10mm Forward||5mm Up|
|4||10mm Forward||15mm Up|
|5||15mm Forward||20mm Up|
|6||15mm Forward||30mm Up|
|7||20mm Forward||5mm Up|
|8||20mm Forward||15mm Up|
|9||25mm Forward||20mm Up|
|10||25mm Forward||30mm Up|
note: all measurements are in relation to stock position (0 mm).
Note: The following photos show SATO 'type 1' and 'type 2' Rear Sets for the Ducati 1098. Our
Rear Sets for the 1198 are essentially the same but have different, 1198-specific heel guards.
The shift and brake pedals utilize double stainless bearings for smooth, precise movement.
( 'Type2' Rear Sets shown )
Deeply knurled footpegs keep your feet firmly planted even in wet conditions.
These 'Type2' Rear Sets feature an integrated brake pedal for precision braking feel.
( 'Type2' Rear Sets )
The positions of both the Step Plates and the Foot Pegs can be adjusted
several ways, so you can find the perfect postion for your riding style.
Our 'Type1' Rear Sets can be used with the stock Ducati brake pedal,
or you can upgrade to a matching Sato Adjustable Brake Pedal.
Pedal Tip position and Shift Rod mounting position are also adjustable, letting you fine-tune
the shift stroke. (Note: these photos depict an earlier design version of these Rear Sets. The
latest version features an updated shift pedal design with more position adjustment holes.
Ducati 1198 shown. On non-DQS models, you can change these Rear Sets
to reverse (GP) shift pattern by rotating the stock change arm. (These
Rear Sets are stock shift pattern only on the DQS-equipped 1198SP).
(Uses STOCK brake pedal or optional SATO Adjustable Brake Pedal Kit)
(w/ integrated brake pedal)
(Note: No hydraulic brake light switch is
included. It is not required with this model.)
ADJUSTABLE BRAKE PEDAL KIT
For 'TYPE 1' Rear Sets
Anodized billet aluminum brake pedal assembly with Delrin pedal tip.
Replaces stock brake pedal. Works well with SATO RACING Type1 Rear Sets.
Note: The brake pedal might touch the lower fairing when installed
with certain aftermarket exhaust systems and some positions.
Reversible Shift Arm with 4 mounting positions. Anodized billet aluminum. Fits most recent Ducati models. Works with both standard and reverse shift pattern setups. Can be used with SATO RACING Rear Sets or the stock Ducati rear sets.*|
(* The optional Sato Rod End is necessary if you want to use the mount position closest to the spindle.)
Rod End (optional)
|M6 MALE REVERSE
* Click Here for important info about Sato GOLD-anodized parts.
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated parts list included
with your Sato Rear Sets, or download the PDF: Type 1 Rear Sets | Type 2 Rear Sets
