TRIUMPH STREET TRIPLE ('17-'19)
REAR SETS


SATO RACING Rear Sets for 2017-19 Triumph Street Triple R/S/RS features a track-engineered design, with components precision machined out of high strength billet aluminum, with your choice of all-Black anodized finish, or Gold finish with contrasting Black shifter assembly. Foot Peg position can be adjusted 5 ways, bringing your feet higher up compared to stock for a sportier riding position. The externally mounted shift linkage design lets you set up these Rear Sets for stock shift pattern or GP-style reverse shift pattern. 2 versions are available: for models with the standard shift linkage and for models equipped with Triumph Shift Assist (quickshifter).

A Shift Spindle Holder is an available option for these Rear Sets. It reinforces the shift linkage for smoother, more precise shifting in heavy duty use.

POSITIONS

1 0mm 15mm Up
2 0mm 28.5mm Up
3 0mm 39.5mm Up
4 12.5mm Back 28.5mm Up
5 12.5mm Back 39.5mm Up

note: all measurements are in relation to stock position (0 mm).

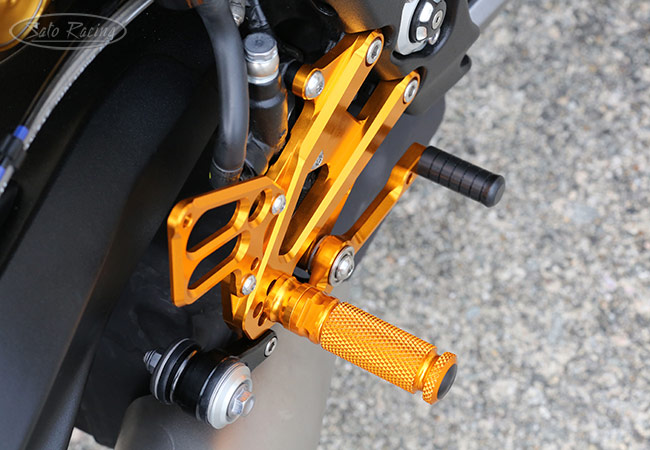

SATO RACING Triumph Street Triple 765 ('17-19) Rear Sets [R]-side
The shift and brake pedals utilize double stainless bearings for
smooth, precise pedal movement with a solid, high quality feel.

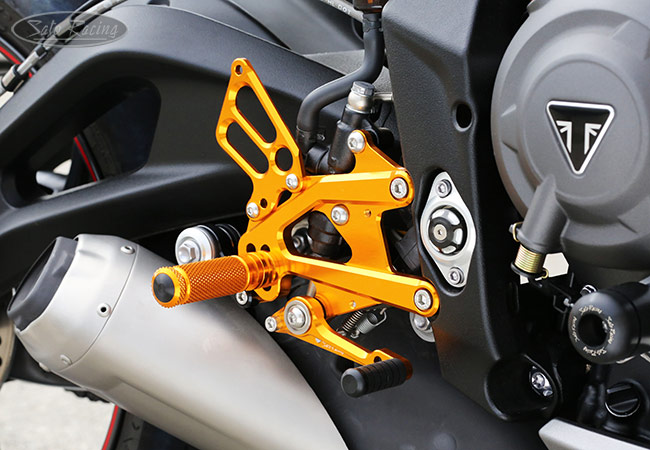

SATO RACING Triumph Street Triple 765 ('17-19) Rear Sets [R]-side
These Rear Sets are compatible with ABS, and work with the stock brake light switch.
Kit includes bracket hardware for attaching the stock exhaust.

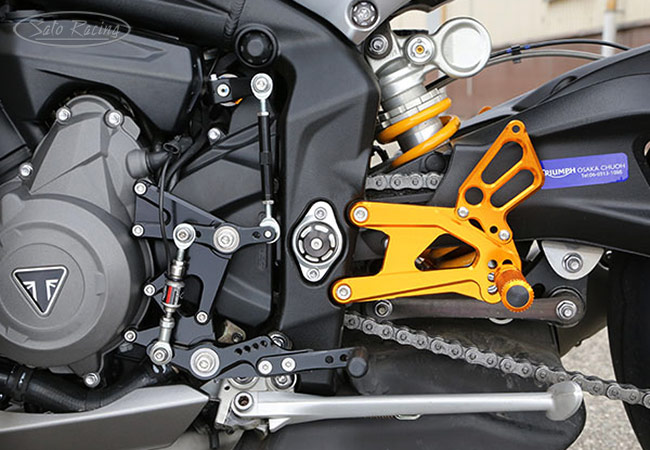

SATO RACING Triumph Street Triple 765 ('17-19) Rear Sets [L]-side
The shift pedal assembly can be set up for stock or reverse shift pattern, and
has numerous adjustment holes, useful for fine-tuning the shift stroke.

SATO RACING Triumph Street Triple 765 ('17-19) Rear Sets [L]-side
Rear Sets version for quickshifter-equipped Street Triple models (part# T-ST765RSQ)
features a multi-link design that works great with the OEM Triumph quick shifter.

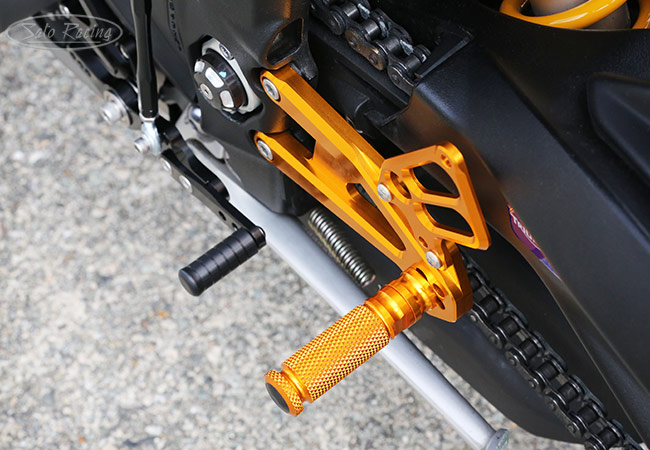

SATO RACING Triumph Street Triple 765 ('17-19) Rear Sets [L]-side
The Foot Peg is adjustable 5 ways, and features a finely knurled grip
pattern for excellent feel. The Pedal Tip position can be adjusted too.




Standard version

BLACK T-ST765RS-BK
$590
GOLD
w/ BLACK Shift Pedal
T-ST765RS-GD
$590

Quickshifter-compatible version

BLACK T-ST765RSQ-BK
$640
GOLD
w/ BLACK Shift Pedal
T-ST765RSQ-GD
$640


Click Here for important info about Sato color-anodized parts.




_________________________________________________________________________________

OPTIONS

_________________________________________________________________________________


SHIFT SPINDLE HOLDER

SATO RACING Shift Spindle Holder reinforces the shift spindle to add extra strength and rigidity to the shift rod linkage for smoother, more precise shifting in heavy duty use. Gold anodized billet aluminum with a Teflon-coated bushing and stainless steel bolts. This model fits 2017+ Street Triple/RS, 2013-16 Daytona 675/R and 2020 Daytona 765 moto2.

SATO RACING Shift Spindle Holder for '13- Daytona and '17- Street Triple

SATO RACING Shift Spindle Holder for '13- Daytona and '17- Street Triple


SATO RACING Shift Spindle Holder for '13- Daytona and '17- Street Triple


GOLD T-D76520RS-SHDR
$95


Click Here for important info about Sato color-anodized parts.



_________________________________________________________________________________



Cutout-style FOOT PEG

Race Concept Cutout style Foot Peg for SATO RACING Rear Sets

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.


Race Concept Cutout-style FOOT PEG (Sold individually)

BLACK RCPEG-BK
$48
GOLD RCPEG-GD
$48

Click Here for important info about Sato color-anodized parts.


Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)




_____________________________________________________________________________



PEDAL TIPS


Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.


Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)




____________________________________________________



FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench



FOOT PEG TOOL
[GOLD]
TOOL-PEG
$45




Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)



__________________________________________________________________________

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated
parts list included with your Sato Racing Rear Sets, or view the PDF:

T-ST765RS - L-side  |  R-side

T-ST765RSQ - L-side
  |  R-side

Some replacement parts for these Rear Sets
can be purchased in our online store
(part numbers correspond to the parts lists for T-ST765RSQ unless otherwise specified):

PEG-BK FOOT PEG [BLACK] PEG-BK
$42
PEG-GD FOOT PEG [GOLD] PEG-GD
$42
PEGCLR-15B PEG COLLAR 15 [BLACK]
PEGCLR-15B
$15
PEGCLR-15G PEG COLLAR 15 [GOLD]
PEGCLR-15G
$15
STUD BOLT M8-50mm
(Peg bolt)
STBT-50
$4.50
ST-001D18 PEDAL TIP (DELRIN) ST-001D18
$15
BBT-M620 BUTTON HEAD M6-20mm
(for Pedal Tip)
BBT-M620
$1.50
SHIFT PEDAL SPD8 [BLACK]
(#5)
SPD-8B
$30.00
SBT-M618 SOCKET HEAD M6-18mm
(#25)
SBT-M618
$1.50
SBT-M645 SOCKET HEAD M6-45mm
(#28)
SBT-M645
$2.00
SBT-M825 SOCKET HEAD M8-25mm
(#31)
SBT-M825
$1.50
FLAT HEAD M6-12mm
(#36)
FBT-M612
$1.50
BUTTON HEAD M6-10mm
(#33, for Heel Guards)
BBT-M610
$1.50
FNT-8 FLANGE NUT M8
(#43)
FNT-8
$1.50
RDED-M6 MALE ROD END M6
(#44)
RDED-M6
$12.50
RDED-M6L M6 MALE
REVERSE ROD END

(#45)
RDED-M6L
$12.50
RDED-F6 FEMALE ROD END M6
(#46)
RDED-F6
$15

(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
